S420 / S460 / Q420 / Q460 + Z15 Z25 Z35 Structural Steel Supplier
Huaxiao Metal supplies High Strength Z-Direction Steel Plates engineered for critical welded structures requiring both high yield strength and certified through-thickness performance.
We deliver structural steel plates configured as:
High Strength Grade + Z15 / Z25 / Z35
Designed for offshore, bridge nodes, wind towers, and heavy structural fabrication projects.
Contents [hide]
Available Strength + Z Combinations
We supply flexible combinations based on engineering requirements:
Size
- Thickness Range: 25mm – 200mm
- Max Width: 3500mm
- Max Length: 18m
European Grades
- S420M + Z15 / Z25 / Z35

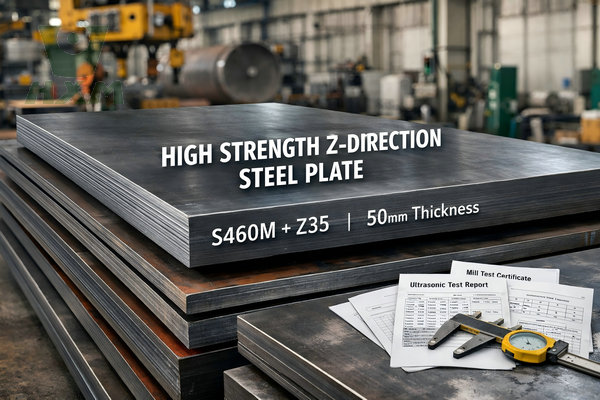

- S460M + Z15 / Z25 / Z35
- S500 + Z25 / Z35
Chinese Grades
- Q420D / E + Z15 / Z25 / Z35
- Q460C / D / E + Z25 / Z35
If your project specifies a different strength + Z configuration, we can arrange mill production accordingly.
Why High-Strength Z-Direction Steel is Different?
While our Low-Alloy Z-Direction Steel serves general construction, the High-Strength series is a high-end evolution.
Micro-Alloying Technology: We incorporate precise amounts of Niobium (Nb), Vanadium (V), and Titanium (Ti) to refine the grain size, ensuring that strength does not come at the cost of brittle through-thickness performance.
TMCP vs. Traditional Rolling: We utilize Thermo-Mechanical Control Process (TMCP) to achieve high strength with a lower carbon equivalent. This makes welding significantly easier compared to traditional high-strength plates.
Extreme Purity: For the High-Strength range, sulfur and phosphorus levels are pushed even lower than standard Z-direction steel to ensure the ultra-fine microstructure required for high-stress applications.
Comprehensive Technical Parameters & High-End Grades
To assist your procurement and engineering teams, we provide a detailed breakdown of the high-strength grades we supply:
| Material Grade (High Strength) | Standard | Yield Strength (ReL) | Tensile Strength (Rm) | Z-Direction Capability |
| Q420GJC / Q460GJC | GB/T 19879 | 420-460 MPa | 520-680 MPa | Z15, Z25, Z35 |
| S460NL / S460ML | EN 10025-3/4 | ≥ 460 MPa | 540-720 MPa | Z15, Z25, Z35 |
| A572 Grade 60/65 | ASTM A572 | 415-450 MPa | ≥ 520 MPa | Class A, B, C |
| S690QL1 (Ultra-High) | EN 10025-6 | ≥690 MPa | 770-940 MPa | Custom Z-Testing |
Z-Direction Performance Benchmarks:
Z15: Area reduction ≥ 15% – For secondary structural nodes.
Z25: Area reduction ≥ 25% – The industry standard for heavy welding.
Z35: Area reduction ≥ 35% – For the most critical, safety-sensitive joints.
Why Buyers Choose High Strength + Z Combination
In modern construction and heavy industrial engineering, the demand for steel with higher strength and greater thickness is increasing daily. However, as steel plate thickness and load increase, a potential danger arises during welding: lamellar tearing. High-strength Z-direction steel plates, however, are specifically designed to resist lamellar tearing in high-stress welded structures effectively.
Huaxiao Metal supplies Z15, Z25, and Z35 high-strength structural steel plates (Q345, Q420, Q460, or S355/S460) with proven thickness-direction ductility (Z-direction performance), suitable for offshore platforms, wind turbine towers, bridges, and heavy steel structures. Ensure your most critical weld joints—T-joints, corner joints, and cross joints—maintain structural integrity under extreme multiaxial stress.
If you are sourcing high strength Z direction steel plates for offshore projects, our ample inventory and direct supply chain to steel mills ensure fast delivery and highly competitive global prices.
Quality Control: Beyond the Standard Test
At Huaxiao, we implement a multi-layered verification process for our High-Strength series:
Automatic Ultrasonic Testing (AUT): Every square inch of the plate is scanned for internal inclusions.
Low-Temperature Impact Testing: We test toughness at -40°C or -60°C to ensure performance in Arctic or high-altitude environments.
Carbon Equivalent (Ceq) Control: We strictly limit Ceq to ensure the steel remains highly weldable, reducing the need for expensive pre-heating procedures on-site.
Third-Party Certification: We provide MTC (Mill Test Certificates) and can facilitate inspections by DNV, ABS, LR, and BV.
Typical Project Applications
High strength Z direction steel is not a “general use” product; it is a mission-critical component for specialized sectors:
1. Super High-Rise Buildings (Skyscrapers)

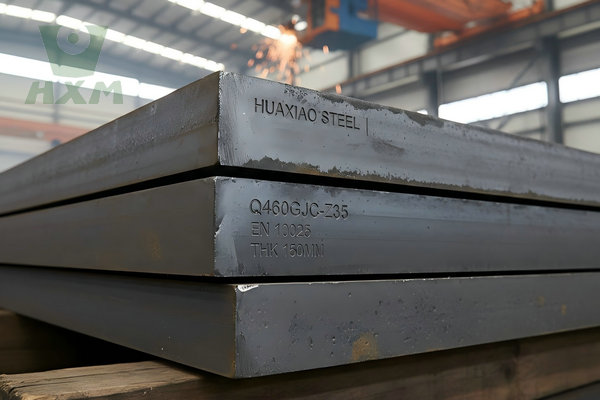

In structures exceeding 300 meters, the steel columns must support immense vertical loads while the beam-to-column joints must withstand lateral wind and seismic forces. Our Q460GJC-Z35 plates are specifically designed for these high-stress “Mega-Nodes.”
2. Deep-Sea Offshore Platforms
Offshore oil rigs and wind turbine foundations face constant fatigue from waves and currents. The high yield strength of our S460+Z35 plates allows for thinner, lighter structures without sacrificing the internal integrity of the welded joints.
3. Large-Span Steel Bridges
Suspension and stay-cable bridges rely on high-strength anchor plates. These plates must handle massive tension through their thickness without the risk of internal delamination (lamellar tearing).
4. Heavy Lifting & Mining Equipment
The boom and chassis of ultra-large cranes require steel that can withstand extreme lifting moments. Our high-strength Z-direction plates ensure that these machines remain safe under maximum load.
If your engineering drawing specifies Z-performance together with high yield strength, this is the correct product category.
FAQ – High Strength Z Direction Steel Plate Products
Why choose High-Strength Z-direction steel over standard Low-Alloy Z-direction steel?
High-strength grades allow for material reduction. By using a stronger grade (e.g., Q460 instead of Q345), you can use a thinner plate to achieve the same structural safety, which significantly reduces the total weight of the structure and the amount of welding required.
Can high strength plates be supplied with Z15 instead of Z35?
Yes. Z level depends on structural requirement. Z35 is not mandatory for all projects.
Is there price difference between Z15, Z25 and Z35?
Yes. Higher Z performance requires stricter production control and affects pricing.
Can you support project documentation package?
Yes. Mill test certificates, inspection reports and export documents are provided.
How does the thickness affect the Z-direction performance?
Generally, as plates get thicker (e.g., >80mm), the risk of lamellar tearing increases due to the cooling rate during production. Huaxiao uses advanced rolling technology to ensure uniform Z-direction ductility even in plates up to 300mm thick.
Is pre-heating necessary when welding high-strength Z-direction steel?
While our TMCP-processed high-strength plates have low carbon equivalents, we still recommend following standard welding procedures for high-strength steel. Our technical team can provide specific welding parameters based on the grade you choose.
Request a Quote for High Strength Z Direction Steel Plate Today
To provide an accurate quotation, please confirm:
Strength grade (e.g., S460M / Q460D)
Required Z level (Z15 / Z25 / Z35)
Plate thickness & dimensions
Impact test requirement (if any)
Quantity & delivery schedule
Destination port
Providing complete information allows us to quote faster and avoid re-confirmation delays.
