Hot Rolled 430 Stainless Steel Coil
Contents [hide]
Hot Rolled Coil 430 Stainless Steel Suppliers | Manufacturer | Exporter
Grade 430 stainless steel coil is a ferrite, pure chromium, non-hardenable grade that combines good corrosion resistance and formability characteristics with useful mechanical properties. Its resistance to corrosion by nitric acid allows it to be used in specific chemical applications, but automotive interiors and electrical components represent its largest application areas.
Stainless steel coil supplier Huaxiao can provide different grades and sizes of stainless steel coils with MTC, SGS, ISO, BV, etc.
If you need to test it by samples, the Huaxiao 430 stainless steel coil supplier can provide free samples for your reference.
Huaxiao Capacity about 430 Hot rolled stainless steel coil, 430 HRC, 430 stainless steel coil
Thickness: 3mm – 30mm, etc.
Width: 600mm – 2000mm, the narrowed products pls check in strip products
Max coil weight: 40MT
Coil ID: 508mm,610mm, etc.
Finish: NO.1, 1D, 2D, #1, hot-rolled finished, black, Anneal and pickling, mill finish, etc.
Standard: ASTM, AISI, SUS, JIS, EN, DIN, BS, GB, etc
* Aim Tolerance = 1/2 (lower limit + upper limit)
Width Tolerance: Mill Edge: Aim ±10 Cut Edge: Aim -0 / +1
Camber: Max. 5 mm / 2M
Telescope & Protruding Wraps: Mill Edge: 50 mm
Cut Edge: 30 mm
Edge Crack: Mill Edge: Max. 5 mm per side
Protective Film for 430 grade stainless steel Coil (25μm ~ 200μm): White and Black PVC film; Blue PE film, Transparent PE film, and Other colors or materials are also available.
Looking to purchase Hot Rolled 430 Stainless Steel Coils at a competitive price? Huaxiao Metal is your trusted supplier from China. Our professional team will assist you throughout the procurement process, from product selection to packaging and shipping.
Contact us now to get the latest 430 stainless steel coil price, check stock availability, and request a free quote or sample.
Hot Rolled Coil 430 Stainless Steel Data Sheet
Stainless Steel Coil Grades Available:
- Stainless Steel coils are available in the following grades :
201, 202, 304, 304L, 309S, 309H, 310S, 310H, 316, 316L, 316TI, 317, 317L, 321, 321H, 347, 347H, 409, 410, 410S, 430, etc. - Nickel Alloy coils are available in the following grades :
such as Monel, Nickel, Inconel, Hastalloy, Copper, Aluminium, etc. - Duplex and super Duplex coils are available in the following grades :
S31803, S32750, S32760, S31500, S32205, etc.
Equivalent Grades of 430 Stainless Steel Coil
| STANDARD | UNS | JIS | WERKSTOFF NR. | AFNOR | BS | GOST | EN |
|---|---|---|---|---|---|---|---|
| SS 430 | S43000 | SUS 430 | 1.4016 | – | – | – | – |
430 Grade Stainless Steel Same grade from different country standard
1.4016 1Cr17 SUS430
430 Grade Stainless Steel Composition ASTM A240 :
| C | Si | Mn | Cr | Ni | S | P | N |
|---|---|---|---|---|---|---|---|
| ≤0.12 | ≤1.0 | ≤1.0 | 16.0～18.0 | < 0.75 | ≤0.03 | ≤0.04 | ≤0.1 |
430 Stainless Steel Coil Mechanical Property ASTM A240 :
- Tensile strength : > 450 Mpa
- Yield Strength : >205 Mpa
- Elongation (%): > 22%
- Hardness: < HRB89
- Reduction of Area ψ (%): ≥50
- Density: 7.7g / cm3
- Melting point: 1427° C
430 Stainless Steel Coil Welding:
- If welding is necessary the Pre-heat at 150-200°C.
- Embrittlement in the weld metal and heat-affected zone can be relieved by a post-weld anneal at 790-815°C
- Grain refinement will not occur.
Description About 430 Stainless Steel Coil
430 stainless steel coil is ferritic stainless steel, 430 16Cr is a representative type of ferritic steel, thermal expansion rate, excellent formability, and oxidation resistance. Heat-resistant appliances, burners, household appliances, type 2 cutlery, kitchen sinks, exterior trim materials, bolts, nuts, CD rods, screens
Because of its chromium content, it is also called 18/0 or 18-0. Compared to 18/8 and 18/10, the chromium content is slightly lower and the hardness is reduced accordingly.
430 Stainless Steel Coil Stock
Request the latest list of ss 430 prices. Please click the Request Quotation button or click here to request an updated price list, ready-made inventory information, and your requirements. Huaxiao Stainless Steel has a stock of all standard products and can export hot rolled stainless steel 430 coils at the best price.

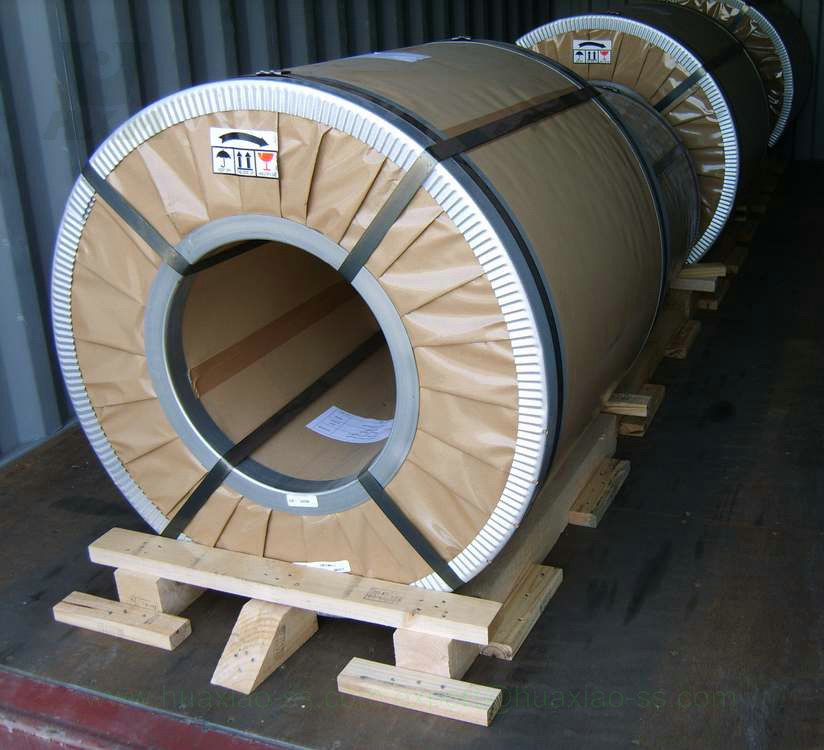

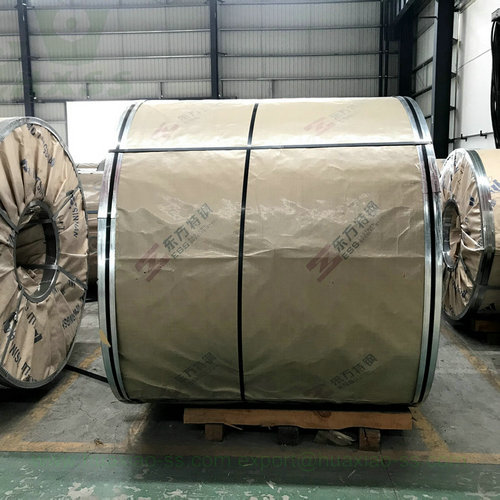

Packaging Information of 430 Grade Stainless Steel
Huaxiao Metal’s AISI 430 stainless steel coils are packaged according to customer requirements. To avoid any damage that may be caused during international transportation, we provide some optional packaging methods, including kraft waterproof paper, plastic bags, PVC coating, and wooden pallets.
Application about AISI 430 Stainless Steel Coil

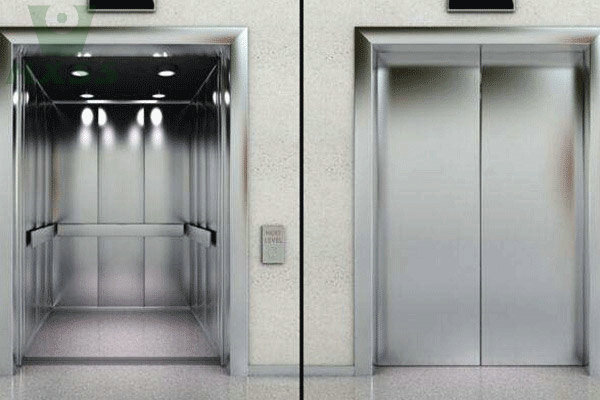

1, 430 stainless steel coil is mainly used for building decoration, fuel burner components, household appliances, and appliances.
2. Add 430F steel with free-cutting performance to 430 grade stainless steel, mainly used for automatic lathes, bolts, and nuts.
3. If we add Ti or Nb to 430 stainless steel coil, reduce the C, can get the grade 430LX, the processing and welding performance can be improved, Mainly be used for hot water tanks, hot water supply systems, sanitary appliances, household durable appliances, flywheels, etc.

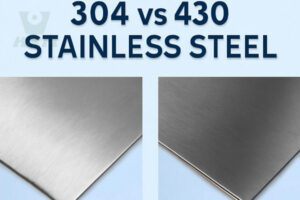

What is the difference between 304 and 430 Stainless Steel?
The addition of nickel into 304 stainless steel means it preserves an “austenitic” molecule, common in molten steel when it is at room temperature. This microstructure produces 304’s stainless steel material properties. Austenitic materials are formable, weldable, resilient even at cryogenic temperatures, and highly corrosion resistant.
In comparison, the 400-series of stainless steels are all ferritic steels. These are less formable, less weldable, and don’t do well at cryogenic temperatures. Still, some types, like the 430 stainless steel, have excellent corrosion resistance and are heat tolerant.
The 304 stainless steel’s strengths mean that it’s used in many applications requiring cold resilience or high ductility, but the nickel increases the overall cost of the material compared to 430 stainless steel. The relative cost of these steels fluctuates with market conditions and specs, but ss 430 price to the manufacturer is often 55-75% that of 304 stainless steel.
In many cases with backyard barbeques, these extra material properties of 304 stainless steel may be unnecessary. Usually, BBQ grills don’t need to manage cryogenic temperatures. With some designs, formability and weldability are not necessary. When homeowners primarily seek corrosion resistance, 430 stainless steel might be as good as 304.
But some designs require formability and weldability: 304 stainless steel is the clear winner in these categories. On the other hand, the processing difficulty of 430 stainless steel is just below 304. Therefore, the supplier’s price, design, and manufacturing expertise are all factors in choosing an alloy.
Given the difference between these two alloys, it is clear that AISI 430 stainless steel can meet the needs of many backyard barbecues. It provides the corrosion resistance and material strength required for this application. An important consideration is that, compared to commercial kitchens, home locations are less likely to be exposed to saltwater or acidic liquids for several hours a day.
Contact Us for AISI 430 Stainless Steel Suppliers and Price
Looking for a reliable supplier of hot rolled 430 stainless steel coils? Huaxiao Metal offers high-quality 430 stainless steel coils at competitive prices, suitable for a wide range of applications including kitchenware, automotive trim, and building materials. We provide global export services and professional packaging to ensure your order arrives safely and on time.
Contact us now to get the latest ss 430 coil price and free samples!
