Choosing the right specialty carbon steel grade is a critical step in ensuring the safety, durability, and cost-effectiveness of your project. With numerous grades available, each with different chemical compositions, mechanical properties, and ideal applications, it can be challenging to determine which grade is best suited for your needs.
At Huaxiao Metal, we specialize in supplying a wide range of specialty carbon steel grades, including structural steel, pressure vessel steel, wear-resistant steel, and custom precision steel. In this guide, we will walk you through everything you need to know to select the right carbon steel grade for your project while helping you understand the differences between various grades, their applications, and international standards.
Contact us today to check our stock and request a quote for your required specialty carbon steel grade.
Understanding Carbon Steel Grades
Before selecting a specialty carbon steel grade, it is essential to understand the basics of carbon steel classification. Carbon steel grades are generally divided based on their carbon content: low-carbon (mild steel), medium-carbon, and high-carbon steel.
| Grade Type | Typical Carbon Content (C) | Key Properties | Typical Applications |
|---|---|---|---|
| Low-Carbon Steel Grade (Mild Steel) | 0.05–0.25% | Excellent weldability, ductility, and formability; cost-effective | Structural components, automotive body panels, and general construction |
| Medium-Carbon Steel Grade | 0.25–0.60% | Balanced strength and toughness; can be heat-treated | Shafts, gears, machinery parts, pressure vessels |
| High-Carbon Steel Grade | >0.60% | High hardness and wear resistance; reduced weldability and formability | Tools, springs, blades, high-wear components |
⚠️ Tip: Higher carbon content increases hardness and wear resistance but reduces ductility and weldability. Choosing the wrong grade can lead to poor performance, cracking during welding, or processing difficulties.
Main Types of Specialty Carbon Steel
Construction Steel
- Applications: building structures, bridges, factory frameworks
- Features: high strength, good weldability, adaptable to various environments
Pressure Vessel Steel
- Applications: boilers, storage tanks, reactors
- Features: high pressure and temperature resistance, compliant with ASTM, EN, and GB standards
Wear-Resistant Carbon Steel
- Applications: mining equipment, crushers, conveyor liners
- Features: high hardness, impact resistance, long service life
Precision / Custom Carbon Steel
- Applications: specialized machinery parts, precision equipment
- Features: high-dimensional accuracy, custom performance based on client requirements
Common Specialty Carbon Steel Grades and Applications
Specialty carbon steel grades are designed for specific industrial applications, including construction, pressure vessels, wear resistance, and precision components. Below is a detailed breakdown:

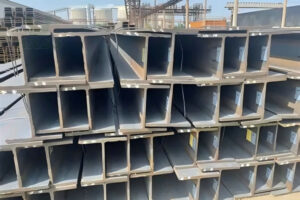

Construction / Structural Steel Grades
Applications: Bridges, buildings, factory frames, steel platforms.
Requirements: High strength, good weldability, formability, and cost-effectiveness.
Recommended Grades:
ASTM A36
EN S235
GB Q235
These structural steel grades offer a reliable balance between strength, weldability, and cost, making them ideal for large-scale construction projects.
Pressure Vessel Steel Grades
Applications: Boilers, storage tanks, reactors, heat exchangers, high-pressure equipment.
Requirements: High strength, toughness, and compliance with safety standards.
Recommended Grades:
ASTM A516 Gr. 70
EN 10028 P355NH
GB 713 Gr. 20 / 22
Pressure vessel steel grades are engineered for high-pressure and high-temperature environments. Selecting the correct grade ensures safety and compliance with international standards.
Wear-Resistant Carbon Steel Grades
Applications: Mining equipment, crushers, conveyor liners, heavy machinery.
Requirements: High hardness, impact resistance, and long service life.
Recommended Grades:
High-carbon steel grades like 1095
Alloyed wear-resistant steel, such as AR400 / AR500 equivalents
High-carbon and alloyed steel grades provide superior durability in high-wear environments. However, they are harder to weld and machine, so proper processing expertise is necessary.

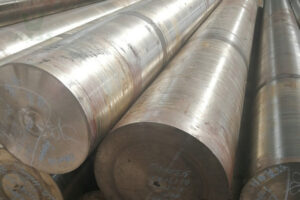

Precision / Custom Carbon Steel Grades
Applications: Special machinery parts, precision instruments, customized components.
Requirements: High dimensional accuracy, tailored chemical composition, heat treatment, or other specific mechanical properties.
Recommended Approach: Work closely with Huaxiao Metal to confirm specifications, production processes, and sample testing to ensure the selected grade meets project requirements.
Grade Selection Guide: Four Key Factors
When selecting the right specialty carbon steel grade, consider the following dimensions:
Load and Operating Conditions
Is the part subject to heavy loads, impact, wear, or friction?
Exposure to high temperature, pressure, or corrosive environments?
Example: Choose ASTM A516 Gr. 70 for pressure vessels, or high-carbon grades like 1095 for wear-resistant parts.
Manufacturing Process
Will the steel be welded, cut, formed, or cold-bent?
For high weldability, select low or medium-carbon steel grades.
For high wear resistance, select high-carbon or alloyed grades, but consider processing difficulty.
Performance vs. Cost vs. Workability
High-carbon/alloyed steel: higher performance but higher processing costs.
Low/medium-carbon steel: cost-effective, easy to process, suitable for large-scale construction.
Quality Control and Standards Compliance
Ensure compliance with ASTM, EN, GB, or JIS standards.
Request MTC / MTR (Material Test Certificate / Report) for chemical composition, mechanical properties, and heat treatment verification.
Comparing Common Specialty Carbon Steel Grades
| Grade | Carbon (%) | Yield Strength (MPa) | Weldability | Typical Use |
|---|---|---|---|---|
| ASTM A36 | 0.25 | 250 | Excellent | Structural steel, bridges, construction |
| ASTM A516 Gr. 70 | 0.27 | 260 | Good | Pressure vessels, boilers |
| EN S355 | 0.22 | 355 | Good | High-strength structural steel |
| High-carbon 1095 | 0.95 | 550 | Poor | Tools, blades, wear-resistant parts |
Tip: Selecting a grade should balance mechanical properties, weldability, and cost based on project needs.
International Grade Equivalents
| ASTM | EN | GB | JIS | Application |
|---|---|---|---|---|
| A36 | S235 | Q235 | SS400 | Structural steel |
| A516 Gr.70 | P355NH | 20 / 22 | STB420 | Pressure vessel |
| 1095 | 80C | 0.95C | SK5 | Tools / wear-resistant |
Understanding international equivalent grades is crucial for export projects or sourcing from multiple steel suppliers.
Why Choose Huaxiao Metal
At Huaxiao Metal, we provide:
A full range of specialty carbon steel grades, covering structural, pressure vessel, wear-resistant, and custom steels.
Compliance with international standards (ASTM / EN / GB), with MTC / MTR provided.
Stable inventory, fast delivery, global logistics, and customization based on your project requirements.
Expert technical support for material selection, sample verification, and testing.
Contact Huaxiao Metal today to request stock availability and pricing for the specialty carbon steel grade you need.
FAQ
What is the difference between low-carbon and high-carbon steel grade?
Low-carbon steel grades have excellent ductility and weldability but lower hardness. High-carbon steel grades offer higher hardness and wear resistance but are harder to weld and form.
How to choose the right carbon steel grade for a pressure vessel?
Consider medium-carbon grades like ASTM A516 Gr. 70 or EN P355NH, which provide adequate strength, toughness, and compliance with international pressure vessel standards.
Which specialty carbon steel grade is best for wear-resistant applications?
High-carbon steel grades like 1095 or alloyed grades such as AR400/AR500 equivalents are ideal for high-wear conditions.
Are there international standards for the same carbon steel grade?
Yes, ASTM, EN, GB, and JIS standards often have equivalent grades. Example: ASTM A36 ≈ EN S235 ≈ GB Q235 ≈ JIS SS400.
In Conclusion
Choosing the right specialty carbon steel grade is the first and most critical step to ensure project quality, safety, and cost efficiency. Whether for construction, heavy machinery, pressure vessels, wear-resistant applications, or precision components, Huaxiao Metal can guide you to select the grade that perfectly matches your requirements.
