Hot Rolled 347 Stainless Steel Plate

Hot Rolled 347 Stainless Steel Plate

Looking for reliable and high-quality 347 Stainless Steel Plate Suppliers? Look no further! Our hot-rolled 347 stainless steel plates are made with the finest materials and state-of-the-art manufacturing techniques, ensuring exceptional durability, corrosion resistance, and overall performance. Trust us to provide you with the best products and services for your industrial or commercial needs.

Hot Rolled 347 Stainless Steel Plate Suppliers | Manufacturers – China Factory

347 stainless steel is an austenitic stainless steel alloy that contains specific elements that enhance its properties, primarily niobium (also known as columbium). The addition of niobium differentiates 347 stainless steel from the more common 304 and 316 stainless steel and gives it several important properties.

As one of the leading hot rolled 347 stainless steel plate suppliers in China, we take great pride in providing our customers with top-quality products that meet their specific needs and requirements. Our sheets are manufactured using advanced technology and are subjected to rigorous quality control procedures to ensure that they meet or exceed industry standards.

304 stainless steel plate, hot rolled stainless steel plate, 347 stainless steel plate prices

Hot Rolled 347 Stainless Steel Sheet  Specification

  • Thickness: 1.2mm~200mm
  • Width: 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
  • Length: 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
  • Standard: JIS, AISI, ASTM, GB, DIN, EN, etc

Hot Rolled 347 Stainless Steel Sheet Data Sheet

Equivalent Material of 347 Stainless Steel  Plate

  • ASTM A240 / ASME SA240
  • UNS S34700
  • EN Number: X6CrNiNb18-10
  • China GB: 0Cr18Ni10Ti
  • Japanese JIS: SUS 347
  • WERKSTOFF NR.: 1.4550

347 Stainless Steel Plate Chemical Composition(%)

0.08% max0.75% max2.0% max0.045% max0.03% max17.0 – 19.0%9.0 – 13.0%10 x (C + N) min.-1.00 max.

Mechanical Properties

Melting PointTensile StrengthYield Strength (0.2%Offset)Elongation
1454 °C (2650 °F)Psi – 75000, MPa – 515Psi – 30000, MPa – 20535 %

Physical Properties

DensityMelting PointSpecific Heat CapacityThermal ConductivityThermal ExpansionModulus of Elasticity (Young’s Modulus)
Approximately 7.96 grams per cubic centimeter (g/cm³)Approximately 1,395-1,450 degrees Celsius (°C)Approximately 500 joules per kilogram-kelvin (J/kg·K)Approximately 14.6 to 16.3 watts per meter-kelvin (W/m·K)16.0 to 17.3 x 10^-6 per degree Celsius (°C)Approximately 200 gigapascals (GPa)

Why choose Huaxiao from China’s 347  Stainless Steel Plate Suppliers and Manufacturers?

As one of the professional 347 stainless steel plate suppliers in China, Huaxiao Stainless Steel Co., Ltd. provides high-quality 347 stainless steel plates. Our 347 stainless steel plate is widely used in a variety of industrial and commercial applications such as knives, medical devices, aerospace and auto parts, food processing equipment, and more.

1. Guarantee Product Quality

We have been a stainless steel plate manufacturer for more than ten years, and we strictly control the quality of our products. Before the customer places an order, we will send the product warranty to the customer, or if some customers need samples for testing, we can also send samples for free.

During production, we will measure the diameter, thickness, and whether there is any damage on the product’s surface.

316 Stainless Steel Seamless Pipe, SS 316 Seamless Pipe

2. Delivery On Time

Our standard delivery time is 7-15 days, except for some special-size products, our delivery time will increase to 20 days.
Our delivery time is strictly in accordance with the contract.

420 Stainless Steel Sheet Suppliers, 420 Stainless Steel Sheet For Sale

3. Support Inspection

  • Support the customer’s third-party organization to go to the factory for inspection
  • Support free sending samples to customers for testing
  • Support on-site or video factory inspection

4. Stainless Steel 347 Plate Price

The price of the product is related to many factors, we do not have a direct price list for your reference.
If you need a specific stainless steel 347 plate price, please send me the specific size and quantity, the more the quantity, the better the price!

Application of China Hot Rolled 347 Stainless Steel Plate

Hot Rolled 347 Stainless Steel Plate is a type of stainless steel that is stabilized by the addition of columbium and tantalum. It is austenitic stainless steel that offers excellent resistance to intergranular corrosion following exposure to temperatures in the chromium carbide precipitation range from 800 to 1500°F. Due to its specific properties, Hot Rolled 347 Stainless Steel Plate finds various applications in different industries. Some of its notable applications include:

  1. High-temperature environments: Its resistance to intergranular corrosion makes it well-suited for applications in high-temperature environments, such as in the manufacturing of furnace parts, heating elements, and other high-temperature equipment where resistance to corrosion is essential.
  2. Chemical processing equipment: 347 stainless steel is widely used in chemical processing equipment due to its excellent resistance to corrosive media. It is often utilized in the construction of reactors, heat exchangers, and other components in chemical and petrochemical plants where resistance to corrosion from chemicals is crucial.
  3. Aircraft exhaust stacks: This type of stainless steel is used in the manufacturing of aircraft exhaust stacks, where the material is exposed to high temperatures and potentially corrosive gases. Its high-temperature strength and corrosion resistance make it a suitable material for this application.
  4. Welded fabrications: 347 stainless steel is often used in welded fabrications where post-weld annealing is not possible or practical. This includes various structural components in industries such as power generation, chemical processing, and food processing, where the material needs to maintain its corrosion resistance even after welding.
  5. Food processing equipment: The corrosion resistance of 347 stainless steel makes it suitable for use in food processing equipment where resistance to acidic food products and cleaning chemicals is essential. It is commonly used in the production of food storage tanks, piping, and other components in the food processing industry.
  6. Heat exchangers: 347 stainless steel is also used in the construction of heat exchangers, particularly in applications where the material is exposed to high temperatures and corrosive environments. Its resistance to intergranular corrosion and oxidation makes it a reliable choice for heat exchanger components.
  7. Oil and gas industry: It finds application in the oil and gas industry for various components such as piping, valves, and other equipment that require resistance to corrosive environments, high temperatures, and pressure.

These are just a few examples of the many applications of Hot Rolled 347 Stainless Steel Plate. Its unique combination of properties makes it a suitable material for various industries where corrosion resistance and high-temperature strength are critical factors.

420 Stainless Steel Sheet

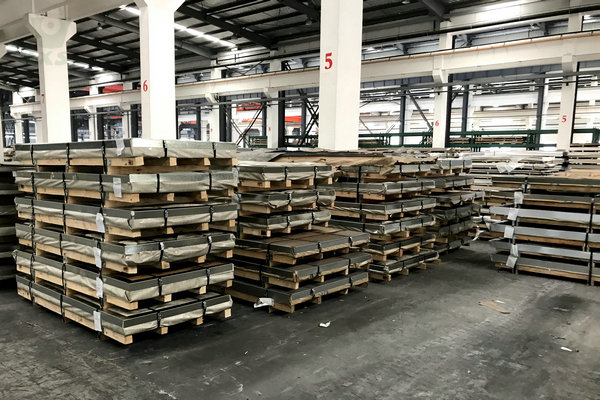

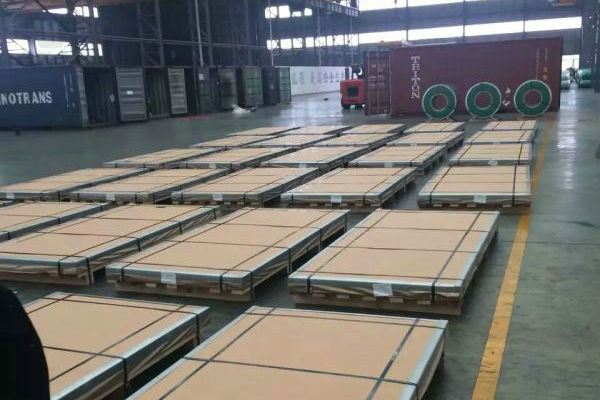

Package of 347 Stainless Steel Plate

When exporting 347 stainless steel plates, it is necessary to ensure that the material is adequately protected from damage during transportation. The following are the export packages of stainless steel plates commonly used by our company.

wooden frame, waterproof paper, angle steel

Steel frame: Fix the stainless steel sheet around the steel frame. These sheets are stacked and secured with metal straps. Steel frame provides extra protection during transport.

It is important that information such as material type, size, weight, and any handling instructions are clearly marked on the packaging. This will help ensure that materials are properly handled in transit and arrive at their destination intact.

The conventional export packaging is as follows. If customers need other packaging methods, we are very happy to cooperate and look forward to cooperating with you.

420 Stainless Steel Sheet Suppliers, 420 Stainless Steel Sheet For Sale

347 Stainless Steel Sheet Suppliers
